About

Description

Key Feature

split ac with non-inverter compressor: power chill operation to ensure quick cooling, pm 2.5 filter to ensure healthy air
capacity 0.8 ton: suitable for small sized rooms (up to 100 sq.ft)
3 star: energy efficiency, Annual energy consumption:548.84 Kilowatt Hours Per Year

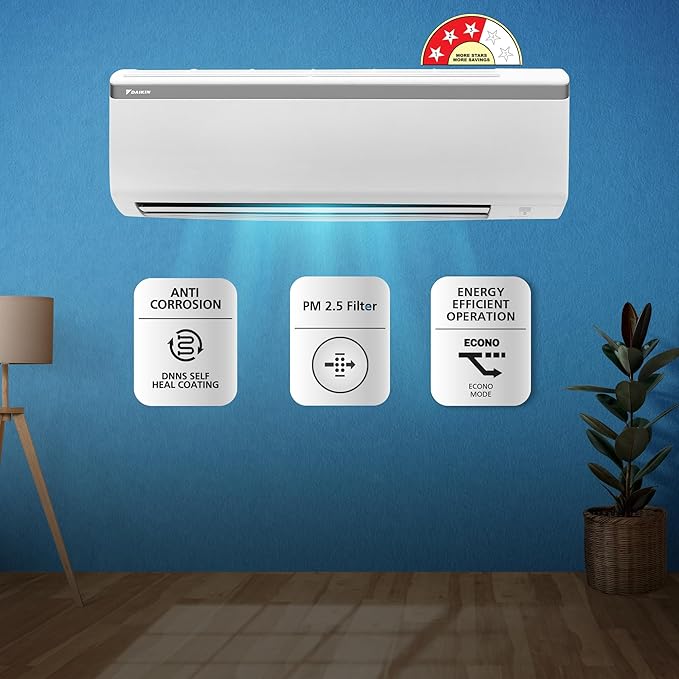

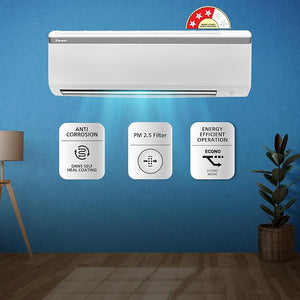

copper condenser coil with dnns self heal coating for low maintenance & enhanced durability
key features- cooling capacity @ 43°c: 100%; noise level: 32 db(a); ambient operation: 50°c
special features: power airflow dual flaps; coanda airflow for uniform cooling across room

refrigerant gas: r32 environmental friendly - no ozone depletion potential
1 Indoor Unit, 1 Outdoor unit, 1 Remote Controller, 3 Mtr. Length Inter Connecting Copper Coil Pipe, 1 Mounting plate, 2.95 Mtr. Insulation Pipe, 3.7 Mtr. Connecting cable (wire), 2 Tie Rap & 9 fixing screws. Scan the QR code on manufacturing label for soft copy of Operational Manual, Installation Manual, Warranty Card, E-Waste Guideline & Wiring Diagram.

Specification

Series	FTL Series
Indoor Model No	FTL28UV16W1
Power supply intake	Outdoor unit
Cooling Capacity Rated Full/Half (min~max)	2.8kW
Cooling Capacity Rated Full/Half (min~max)	9,550Btu/h
Power consumption (Cooling) Rated Full/Half (min~max)	709W
Annual Power Consumption	548.84kWh

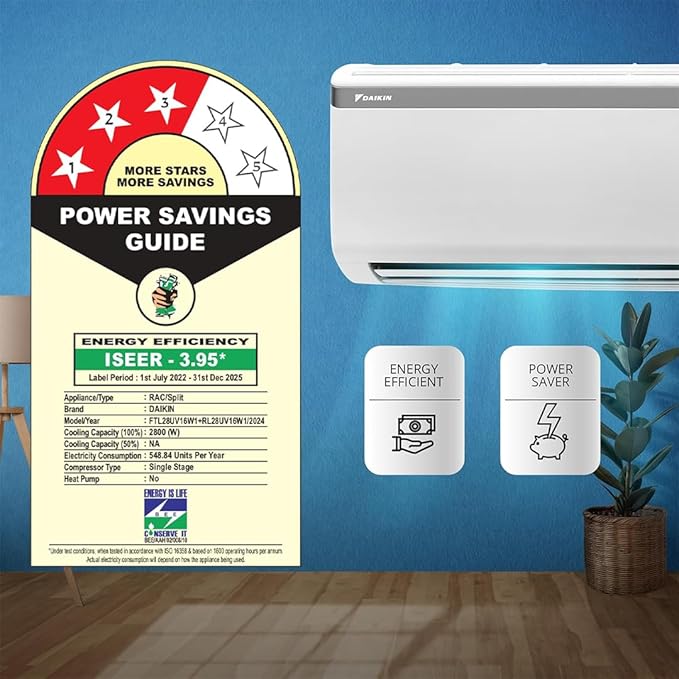

ISEER / ISEER Rank	3.95 / Non Inverter - 3 Star
Power Supply	1 , 230, 50V, Hz
Operating Current - Cooling	35.18A
Filters	PM 2.5 Filter
Self Diagnosis	Yes
Sleep Mode	Yes
Timer	Yes
Auto Restart	Yes

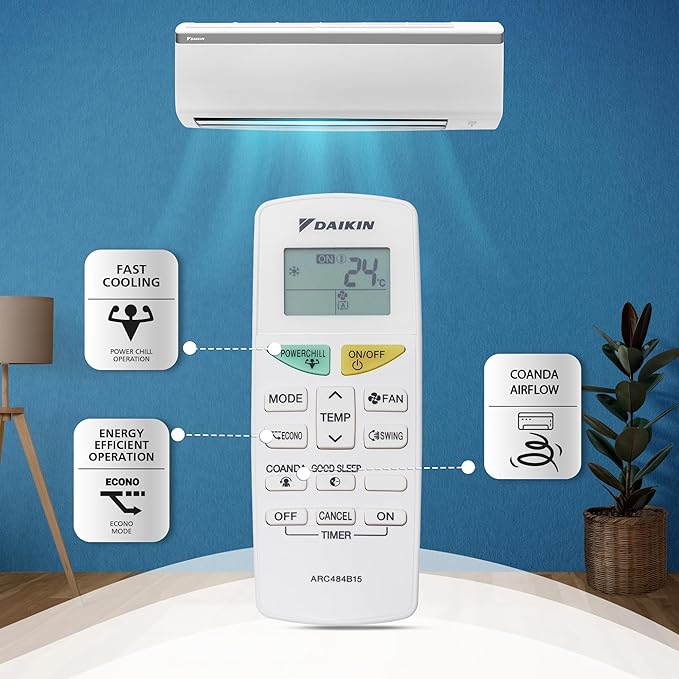

Other Convenience Features	Power airflow dual flaps ; Wide-Angle Louvers ; Vertical auto-swing (up & down) ; New Coanda Airflow ; Power Chill Operation ; Econo Mode ; Smell proof operation ; Auto-Restart after Power Failure

Indoor Unit

Front Panel Colour	White

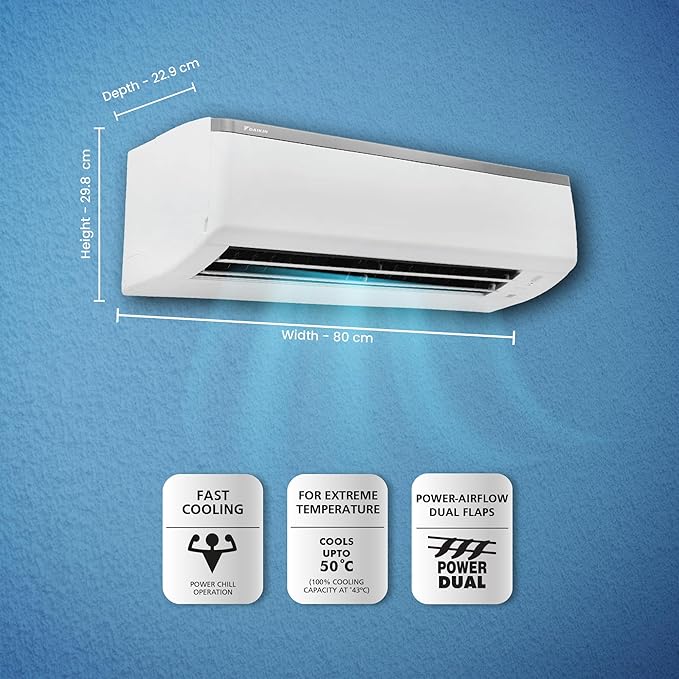

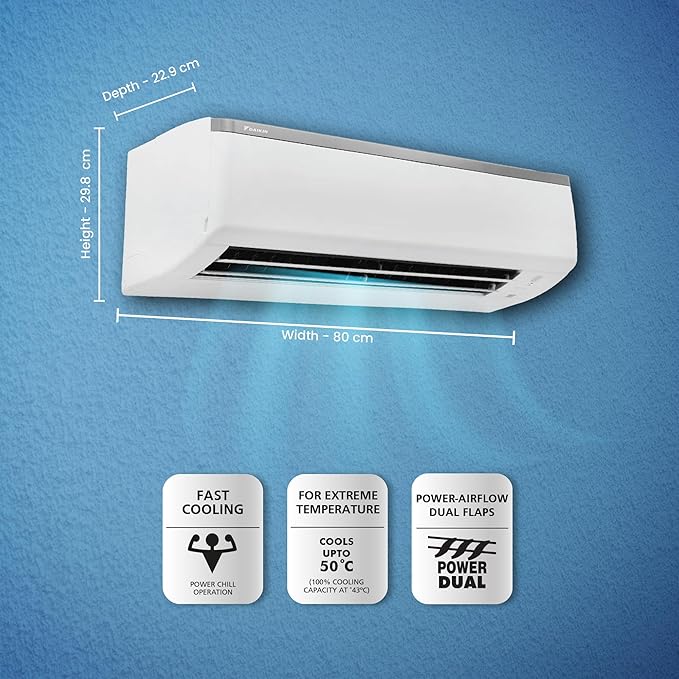

Dimensions	298 x 800 x 229(H x W x D)
Machine Weight	9.5(Kg)
Airflow rate	473Feet³/min (Cfm)
Airflow rate	13.4m³/min (Cmm)
Moisture Removal	0.5Liters/Hour
Sound Levels (H / M / L)	43 / 37 / 32

Outdoor Unit

Front Panel Colour	White
Dimensions	298 x 800 x 229(H x W x D)
Machine Weight	9.5(Kg)
Airflow rate	473Feet³/min (Cfm)
Airflow rate	13.4m³/min (Cmm)
Moisture Removal	0.5Liters/Hour
Sound Levels (H / M / L)	43 / 37 / 32

Warranty

1 years on product, 5 years on compressor

FTL

Econo mode

Econo mode enables efficient operation by limiting the maximum power consumption. It is useful when using the air-conditioner and other electrical devices simultaneously on a shared electrical circuit. This mode helps you in reducing your electricity bills. 100% Copper

Daikin air conditioners Condensers are equipped with 100% copper coils which functions as the backbone for robust air conditioning system. Stabilizer free

This machine is equipped with Stabilizer free which removes its dependency from external stabilizer.

R-32 Refrigerant

R32 (Green Refrigerant) has zero Ozone Depletion Potential (ODP) and Modified Global Warming Potential (GWP) of 472, compared to R410A’s Modified GWP of 2,027. Also R32 is a single component refrigerant, which makes it easy to recycle. It is because of these reasons that R32 offers the lowest total emissions and best overall life cycle climate performance.
