About
Description
Technical Details
|
Rated Voltage / Frequency / Phase
|
230V/50 Hz/1 Phase
|
|---|---|
|
5 in 1 Converter
|
Yes
|
|
Acoustic Jacket on Compressor
|
Yes
|
|
Air Flow Volume (Dry Cfm)
|
400
|
|
Anti-Freeze
|
Yes
|
|
Auto Restart With Memory Function
|
Yes
|
|
Clock
|
Yes
|
|
Compressor Type
|
Rotary
|
|
Compressor Warranty
|
10 Year
|
|
Condenser Fins
|
Copper Condenser with Anti Corrosive Blue Fins
|
|
Cooling Capacity in Watts / Nominal Capacity in Tr.
|
3450 W / 1 Tr
|
|
Copper Pipe (m)
|
3
|
|
Display in IDU
|
Hidden Display
|
|
Electricity Consumption (1600 Hours) Units Per Year
|
524.03
|
|
Evaporator Fins
|
Hydrophilic Blue Fins
|
|
Expansion Device in ODU
|
Capillary
|
|
Filter Configuration
|
Anti-Dust Filter + Active Carbon Filter + Nano Coated Antiviral Filter
|
|
Front Panel Colour (Strip)
|
White (Chrome)
|
|
Horizontal Louver
|
Auto
|
|
Hygiene+ / Blow (Self Clean)
|
Yes
|
|
i-Sense
|
Yes
|
|
IDU Dimension (W x H x D) Cm
|
85 x 28.9 x 21
|
|
Input Power Supply
|
Indoor Unit
|
|
Inter Connecting Cable (m)
|
3.5
|
|
ISEER (Star Rating)*
|
5.1 (5 Star)
|
|
Liquid Tube Size Outer Diameter Inch (mm)
|
1/4'' (6.35)
|
|
Lock
|
Yes
|
|
Max Ambient Temp (Cooling) °C
|
52
|
|
Max Piping Capability Total (m)
|
20
|
|
Max Piping Capability Vertical (m)
|
7
|
|
Model No.
|
AC 1T SIC 12TTC5-WW
|
|
Modes
|
Cool/Auto/Dry/Fan/Sleep/Turbo
|
|
Net Weight IDU (Kg)
|
10
|
|
Net Weight ODU (Kg)
|
29
|
|
Noise Level Indoor (High / Medium / Low) in db(A)
|
44/41/37
|
|
Noise Level Outdoor in db(A)
|
58
|
|
ODU Dimension (W x H x D) Cm
|
85.8 x 59.2 x 31.2
|
|
Power Input in Watts
|
810
|
|
Rated Current (Amps)
|
3.7
|
|
Refrigerant
|
R32
|
|
Refrigerant Additional Charge Beyond 4m (g/m)
|
15
|
|
Self Diagnosis (Error Codes)
|
Yes
|
|
Suction Tube Size Outer Diameter Inch (mm)
|
1/2" (12.7)
|
|
Timer On / Off
|
Yes
|
|
Vertical Louver
|
Manual
|
Description
Technical Details
|
Rated Voltage / Frequency / Phase
|
230V/50 Hz/1 Phase
|
|---|---|
|
5 in 1 Converter
|
Yes
|
|
Acoustic Jacket on Compressor
|
Yes
|
|
Air Flow Volume (Dry Cfm)
|
400
|
|
Anti-Freeze
|
Yes
|
|
Auto Restart With Memory Function
|
Yes
|
|
Clock
|
Yes
|
|
Compressor Type
|
Rotary
|
|
Compressor Warranty
|
10 Year
|
|
Condenser Fins
|
Copper Condenser with Anti Corrosive Blue Fins
|
|
Cooling Capacity in Watts / Nominal Capacity in Tr.
|
3450 W / 1 Tr
|
|
Copper Pipe (m)
|
3
|
|
Display in IDU
|
Hidden Display
|
|
Electricity Consumption (1600 Hours) Units Per Year
|
524.03
|
|
Evaporator Fins
|
Hydrophilic Blue Fins
|
|
Expansion Device in ODU
|
Capillary
|
|
Filter Configuration
|
Anti-Dust Filter + Active Carbon Filter + Nano Coated Antiviral Filter
|
|
Front Panel Colour (Strip)
|
White (Chrome)
|
|
Horizontal Louver
|
Auto
|
|
Hygiene+ / Blow (Self Clean)
|
Yes
|
|
i-Sense
|
Yes
|
|
IDU Dimension (W x H x D) Cm
|
85 x 28.9 x 21
|
|
Input Power Supply
|
Indoor Unit
|
|
Inter Connecting Cable (m)
|
3.5
|
|
ISEER (Star Rating)*
|
5.1 (5 Star)
|
|
Liquid Tube Size Outer Diameter Inch (mm)
|
1/4'' (6.35)
|
|
Lock
|
Yes
|
|
Max Ambient Temp (Cooling) °C
|
52
|
|
Max Piping Capability Total (m)
|
20
|
|
Max Piping Capability Vertical (m)
|
7
|
|
Model No.
|
AC 1T SIC 12TTC5-WW
|
|
Modes
|
Cool/Auto/Dry/Fan/Sleep/Turbo
|
|
Net Weight IDU (Kg)
|
10
|
|
Net Weight ODU (Kg)
|
29
|
|
Noise Level Indoor (High / Medium / Low) in db(A)
|
44/41/37
|
|
Noise Level Outdoor in db(A)
|
58
|
|
ODU Dimension (W x H x D) Cm
|
85.8 x 59.2 x 31.2
|
|
Power Input in Watts
|
810
|
|
Rated Current (Amps)
|
3.7
|
|
Refrigerant
|
R32
|
|
Refrigerant Additional Charge Beyond 4m (g/m)
|
15
|
|
Self Diagnosis (Error Codes)
|
Yes
|
|
Suction Tube Size Outer Diameter Inch (mm)
|
1/2" (12.7)
|
|
Timer On / Off
|
Yes
|
|
Vertical Louver
|
Manual
|
National Radio Electronics
by
National Radio Electronics

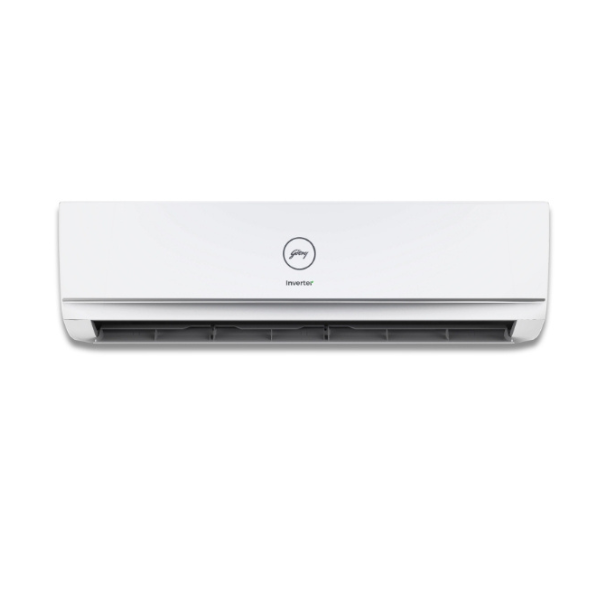

GODREJ AC 1T SIC 12TTC5
