Dimensions & Weight
| Product Dimensions | 320mm x 290mm x 140mm (L x B x H) |
| Weight | 7 kg |
-32%

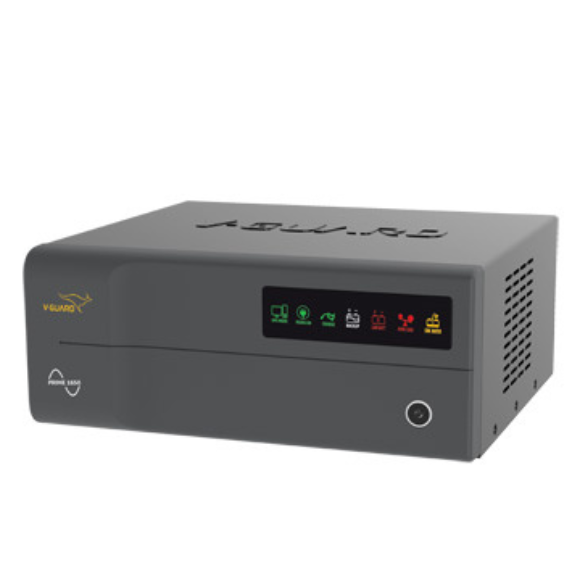

V GUARD INVERTER PRIME 1650
Brand: V GUARD
Maximum Retail Price, inclusive of all taxes
👁 20 People watching this product now!
Pick up from National Radio ElectronicsPick up from National Radio Electronics Store at your convenience.Free
Standard deliveryOur courier will deliver to the specified address4-7 DaysFree
Payment Methods:
Description
Key Feature
- Battery Gravity Builder protects against overcharging and deep discharging, extending life, reducing maintenance, and lowering replacement costs.
- Digital Signal Controller delivers pure sine wave output, safeguarding sensitive devices (TVs, desktops, routers) from surges and fluctuations—ideal for frequent power-cut areas.
- Intelligent cooling system runs the fan only as per load/temperature, cutting noise and saving energy.
- Fuzzy logic alerts remind users to maintain water levels, preventing battery dry-out.
- Fast-charge SMPS technology ensures quick, efficient charging for uninterrupted power readiness.
- Power-saving configuration adjusts charging current as per battery type/capacity (Flat Plate/Tubular; 80Ah–230Ah) for optimum performance.
- Advanced SMPS charger with DSC pulse width modulation ensures efficient and reliable charging.
- Extended backup mode (toggle switch) maximizes battery life and ensures longer power during outages.
- Selectable charging modes support 80Ah–230Ah batteries, enhancing charging efficiency and extending durability.
- Compatible with EV two-wheeler chargers up to 350W (charger capacity may vary depending on the make and type of the charger).
Specifications
| Brand | V-Guard |
| Model | PRIME 1650 |
| Capacity | 1400VA |
| Voltage | 220 Volts |
| Colour | Metallic Grey |
| Item Weight | 7 Kilograms |
| Maximum Power | 1120 Watts |
| Mains Input Voltage Range | Normal Mode: 90V - 290VAC + 10V, 40Hz - 57Hz UPS Mode: 180V - 260VAC + 6V, 46Hz - 54Hz |
| UPS Output Voltage (Mains Mode) |
On Mains: Same as Input (within the working range) |
| No Load Output (Battery Mode) |
220V, 50Hz, 1P (IN NORMAL MODE) 230V, 50Hz, 1P (IN UPS MODE) 240V, 50Hz, 1P (IN HIGH PERFORMANCE MODE) |
| Output Waveform | Pure Sinewave |
| Transfer Time | UPS mode <10mSec |
| Battery Type & Capacity | 12V, 135Ah to 230Ah, Lead Acid (1 No.) |
| Battery Recharge Time* | 10-12hrs (Depends on battery capacity & charging selection) |
| Operating Temperature | 0°C to 45°C |
| Application | LED TV (Up to 55”), Fan, EESL LED Bulb, CFL, Tube Light, Inverter Refrigerator (Up to 600 Litres), Mixer (Up to 900W), Room cooler / Desert Cooler (Up to 90L / 300W), Sound bar / Speaker system, 1HP Monoblock Self Prime Pump, Kitchen Chimney (Up to 1200 m3/hr), Desktop Computer, Deskjet Printer, PlayStation, 2-Wheeler EV charger (Up to 600W) |
